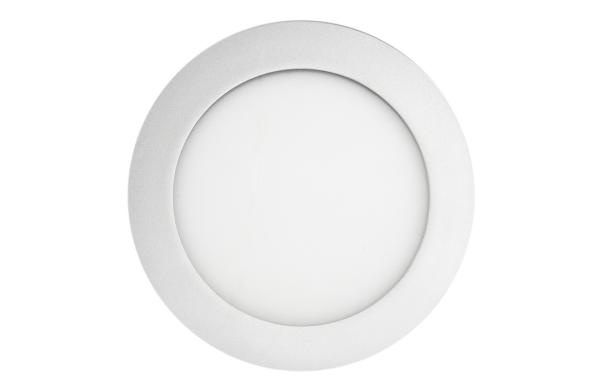

180x15mm 10W Round LED Panel Light

Place of Origin : China

Certification : CE , Rohs

Model Number : GS-LPL10R

MOQ : 100pcs

Packaging Details : in carton

Delivery Time : 3-5 days after confirm your payment for sample order or according to your order quantity

Payment Terms : Paypal,Western Union or T/T

Supply Ability : 10000pcs/month

Contact Now

Features :

Super Slim and stylish design
High –lumen SMD LED chip
Frosted acrylic cover, Anti-glare
Environmental friendly and energy-saving. , contains no mercury or lead.
Ideal replacement solution for traditional down light . Consume 50%-70% less power at same lumens.

Specification :

OPTICAL	LED Power Consumption	7W
	System Power Consumption	10W
	LED Q’ty	108pcs
	Dimensions	6 inches (Φ180mm,H=18mm)
	Cutting Hole Size	>Φ160mm
	LED Initial Flux	>800lm
	Lamp Maintain Flux *(After the frosted cover and thermal stabilization)**	>550lm
	LED Source	High – lumen SMD 3528LED (7-8 Lm/Per LED)
	Color	CW 7000K+ PW 6000K-6500K NW 4000K-4500K WW 2800K-3500K Red / Green / Blue (Optional)
	Illumination (Enadir) (LED Power=7W PW6500K)	Mount Height= 3M : >22lux Mount Height= 5M : >7 lux Mount Height= 8M : >4 lux Mount Height= 10M : >2lux
	CRI	WW: Ra>60 PW:Ra>70
	Light Distribution Curve	Circle Facular
	Beam Angle	140 degrees
	Light Decay	< 15% (20,000 hours)
ELECTRICAL AND MECHANICAL	Input Voltage	AC100V-AC240V (50-60Hz)/AC277V+ (Optional)
	Working Voltage	24VDC
	Dimming Control	Optional( 0%-100%)
	Cover	Frosted Acrylic
	Lamp Efficiency	>85%
	Power Factor	>0.93
	IP Grade	IP50
	Net Weight	150G±5 %(6W )/ 350G±5 %(10W),/ 500G±5 %(12W)
	Material	Aluminum Alloy+ Acrylic
	Working Environment	Temp: -40℃ ~ 55℃ Humid:10%-90%

Quality 180x15mm 10W Round LED Panel Light wholesale
